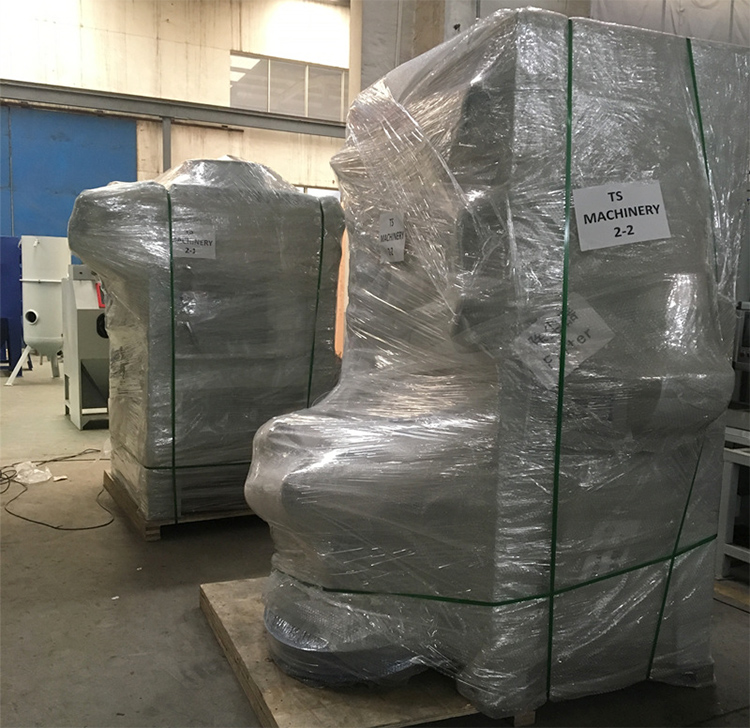

1 set Automatic Sandblasting Machine for Cleaning Aluminium Cable Delivered to Vietnam. Thipha Cable was established in 1987 and has been developing in nearly 30 years. Thipha Cable (Thịnh Phát) is acknowledged as well-known wire and cable brand in Vietnam. They are the main supplier for Vietnam National Power Transmission Corporation (EVN).
To meet their requirements on productivty: cable dia.30mm, speed at 10m/min; cable dia.7mm, speed at 30m/min, numbers of blasting gun max 24pcs. Our engineer team design a suitable model DISA1212-16A.

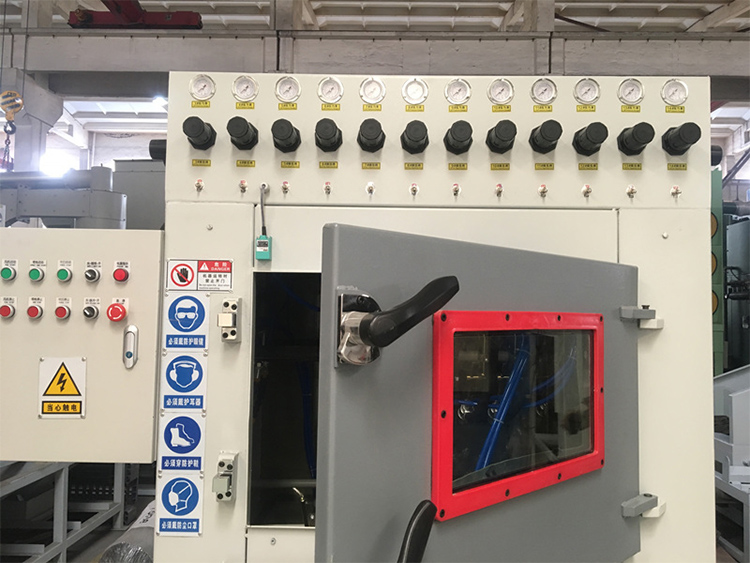

DISA1212-16A automatic sand blast machine is designed for cleaning aluminum cable, to get the certain roughness and improve the adhesion force, before PE compound insulated.
Working Principle
The machine is with siphon cabinet, that is, uses a compressed air stream inside a siphon blast gun to create a vacuum in a chamber creating a negative pressure, pulling the abrasive into the nozzle and spray out to achieve the effect of sand blasting processing.
Operator required: 1 person
Technical Specifications
|
Model
|
DISA1212-16A
|
|
Size
|
1600×3100×3300(L*W*H)
|
|
Weight
|
About 600kg
|
|
Voltage
|
380V 50HZ
|
|
The diameter of nozzle
|
8mm
|
|
Working pressure
|
4-7bar
|
|
Quantity of Blasting Gun
|
16pcs
|
|
Lighting System
|
15w x 2
|
|
Fan power
|
7.5kw
|
|
Air consumption
|
>16m³/min
|
|
Cleaning level
|
Sa2.5-3
|
|
Roughness
|
40-70μm
|
|
Usable abrasive
|
Aluminum Oxide #60-#80
|
|
Initial Feeding
|
About 50kg
|
Wuxi DISA Blasting Co., Ltd. is a high-tech enterprise dedicated to the development of surface treatment technology and surface treatment equipment for a long time. It is a high-tech entity enterprise specializing in the research, design, manufacturing, processing and commerce of sandblasting (shot blasting) and shot blasting equipment.
