belt conveyor sand blast cabinet, automatic conveyor blasting machines are excellent for all around complete and continuous blasting of flat, voluminous, or complex components.
Automatic conveyor blasting machines are excellent for all around complete and continuous blasting of flat, voluminous, or complex components. Our powerful blast rotary head systems are mounted to the blast cabin housing in the most optimum positions to further insure uniform blast coverage of the components. Includes flat belt pass-through systems, a reciprocating system for return-to-operator processing of components, an opposing V-belt conveyor design for high speed in-line blasting of small parts and roller conveyor machines for in-line blast treatment of long sections of tube or bar material.
While conveyor blast systems may be loaded by hand, it is common for automatic through-feed machines to interface with other in-plant material handling equipment to operate unmanned. Feed rates depend on the total surface area to be blasted and the number and type of blast guns. PLC control and electronic sensor technology enables blast guns to be automatically turned off when no components are present, eliminating waste of energy and unnecessary wear-and-tear on the machine.

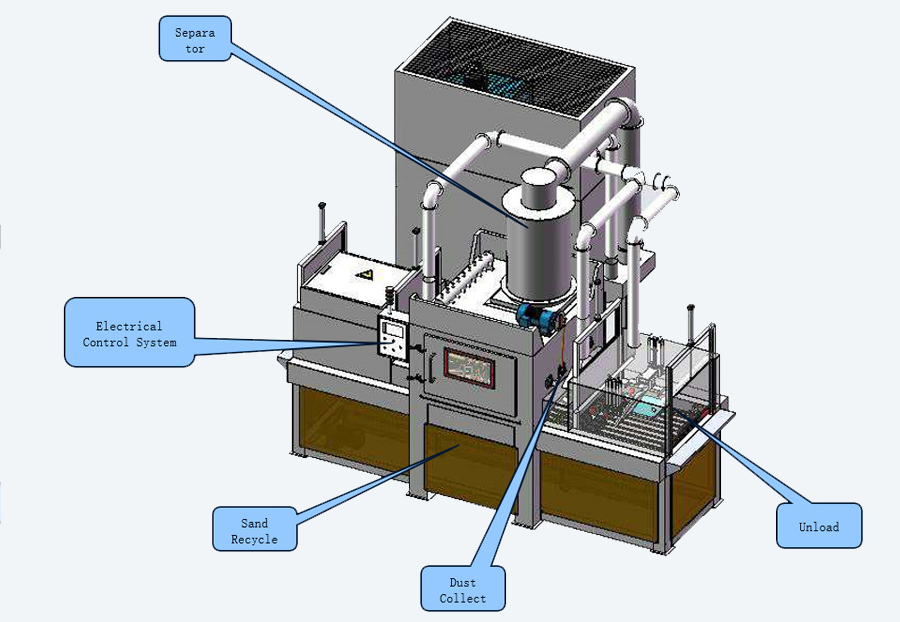

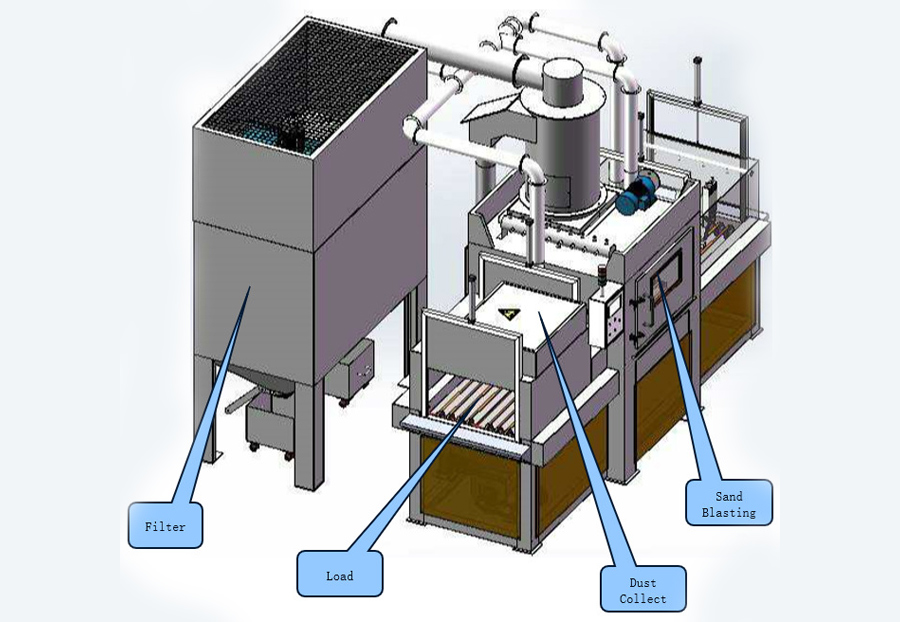

Product Structure
Product Advantages
Short processing times
Long useful nozzle life
High blasting performance
Abrasion resistant piping system
Easy accessibility and easy replacement of the nozzles and parts
Direct drive, fewer wear parts, such as the bearing block, lower noise level
Front door with window protect by a rubber sheet to protect against abrasive
Heavy Duty construction and welded steel housing
Continuous flow blasting process
Available with 8mm and 10mm adjustable nozzles for optimal blasting results
Uniform processing of complex component contours
High process reliability with all-around blasting result
Processing of long components (profiles, beams) is possible, as well as the secure blasting of small components and parts
Easily integrated into existing production lines
Product Parameter
Model
Type
Qty of guns
Machine area(mm)
DISA-600-8A
Cyclone separator
8pcs
3520x1650x3180
DISA-800-12A
Cyclone separator
12pcs
3520x1650x3180
DISA-800-16A
Cyclone separator
16pcs
3520x1650x3180
DISA-800-16A
Elevator Separator
16pcs
3520x2100x3300
Product Application

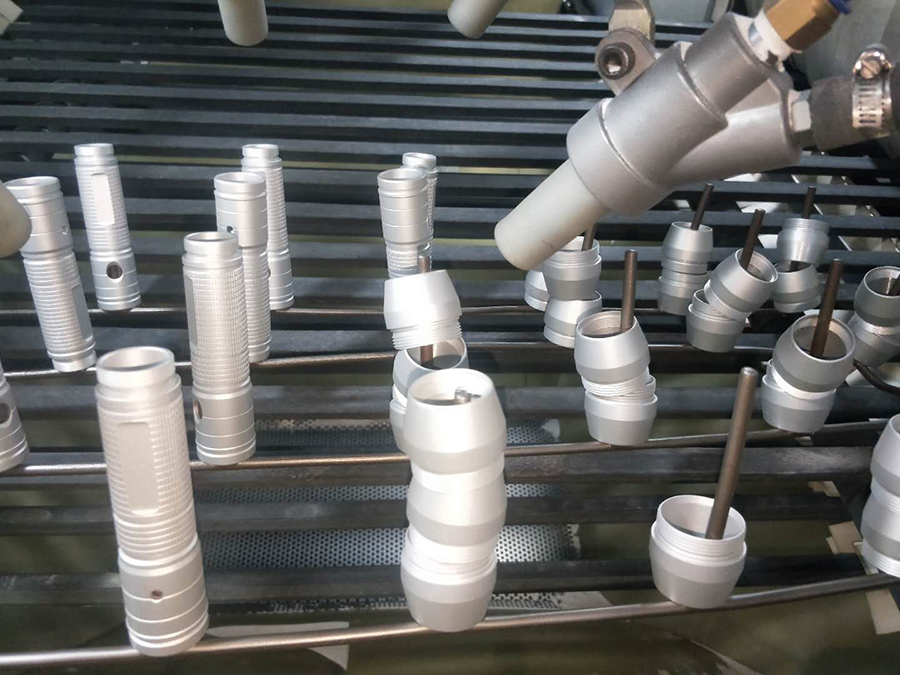

Belt conveyor sand blasting machine is widely used in blasting flat, dish shaped, aquare, section bar and shaped work pieces such as stainless steel plates, carbon steel plate, glass, marble, frying pans, toasters, computer cases, DVD cases, laptop, electric soleplates, omaments, tablets, badges, communication kits, aluminium plate, profile and other shaped products.
Abrasive Available: Mesh 36-220 aluminium oxide, glass bead, zircon sand, carborundum, silicon carbide and etc.
